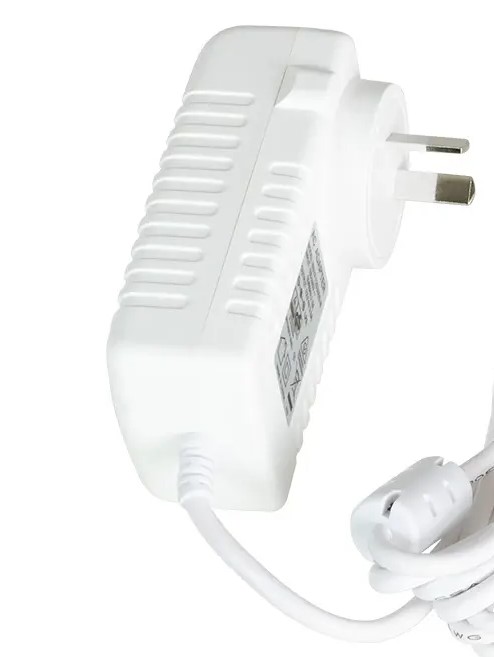

Netgate 1100 Replacement Power Supply

    14.61 14.61 AUD 14.61


    This combination does not exist.

    Replacement power supply for the Netgate SG-1100

    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

     Certified for use in Australia & Includes an Australian Power Supply

    If you are considering an old PC to run your pfSense appliance; please read this first.

    How to connect your SG-1100 to the NBN in Australia

    Small Office Appliance

    High throughput Small & Branch Office Solution

    The SG-1100 is Netgate’s replacement for the highly successful SG-1000. Consumer and business customers will quickly appreciate that this product packs a serious punch with the factory edition of pfSense® software, world-class price-performance, elegant packaging, and an unbeatable low price. The SG-1100 is underpinned by the powerful, yet energy efficient, 64-bit Marvell ARMADA® 3720 network processing system-on-chip (SoC), which fully leverages dual Cortex®-A53 ARM® processor cores.

    For users seeking an excellent firewall with up to 1 Gbps throughput, the SG-1100 is the new gold standard.


    SoCMarvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz
    System Memory1 GB DDR4 RAM on board
    Storage8 GB EMMC
    Network Interfaces1x Marvell 88E6141 networking switch
    3x GbE Ethernet (WAN/LAN/OPT)
    1x Mini PCIe slot(1)
    USB1x USB 3.0
    1x USB 2.0
    1x Micro USB port (console)
    MiscReset button, heatsink, 3 Status LED
    Power12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported)
    Power Consumption3.48W (idle)
    Operating Temperature 0°C (32°F) to 45°C (113°F)
    EnclosurePlastic 110 x 84.6 x 31.75 mm (4.33" x 3.33" x 1.25")
    Hardware Warranty1 year standard with purchase
    CertificationsCE, FCC, RoHS. Looking for RCM certification? Inquire with our Australia or New Zealand Partners.
