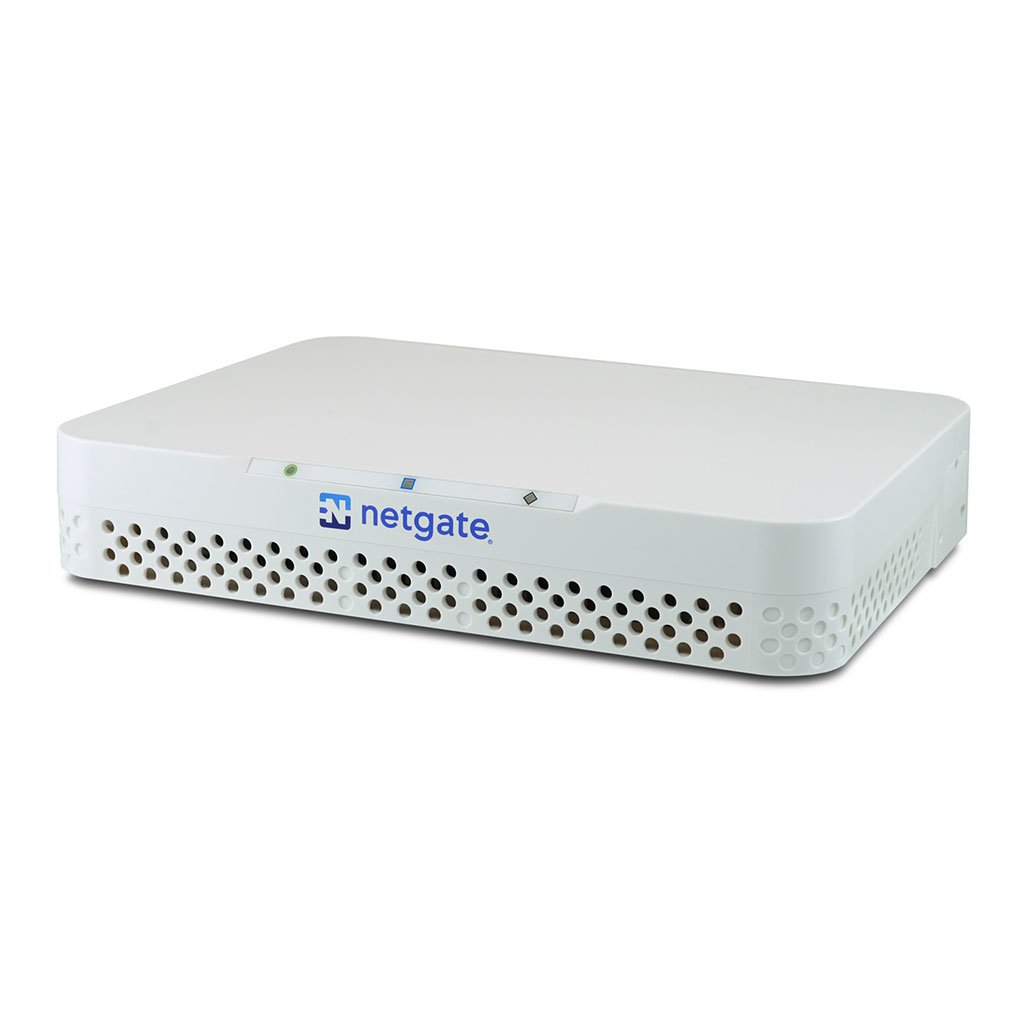

Netgate 6100 BASE pfSense+ Security Gateway Appliance
Netgate 6100 BASE pfSense+ Firewall Appliance
2.2 GHz Quad-Core Intel® Atom® C3558
8 GB DDR4 Memory / 16 GB eMMC
2 x 10 Gbps SFP+ WAN ports / 2 x 1 Gbps (Combo) WAN
4 x 2.5 Gbps RJ45 "direct" LAN
2x 3.0 USB / MicroUSB + RJ45 Console (Cisco pinout)
All Prices ex GST.
Checkout for GST and shipping costs.
We aim to dispatch all in-stock orders within 24 hours.
CPU | Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family) |
CPU Cores | Quad Core |

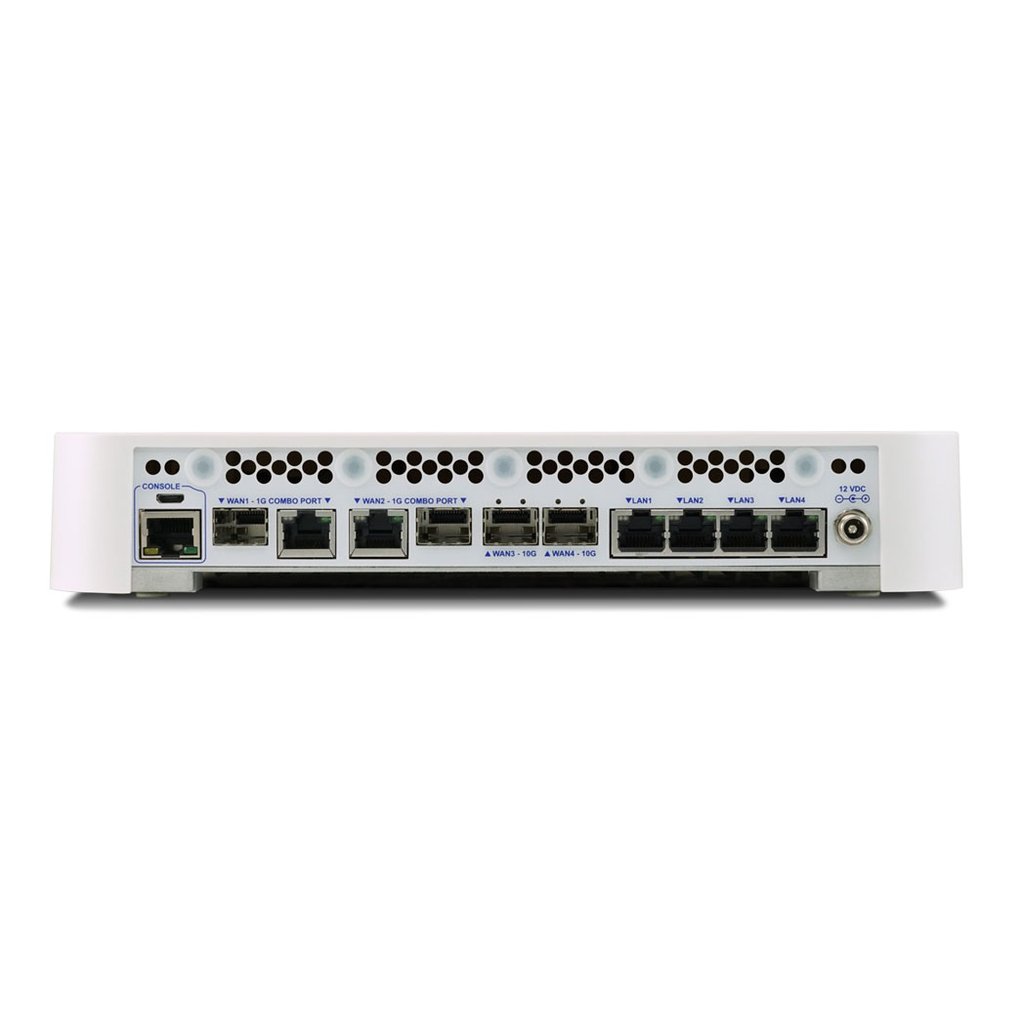

Physical Network I/O ports | (2) 10 Gbps SFP+ cage (WAN) (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN) (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) |
Storage | 16 GB eMMC (onboard - soldered) upgradable to 128 GB NVMe M.2 SSD with 6100 MAX |
Memory | 8 GB DDR4 w/o ECC, single channel |
Physical Expansion Card Slots | 2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0) 1x Mini-PCie Slot (Wi-Fi Only) |
Console Port | 1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system) |

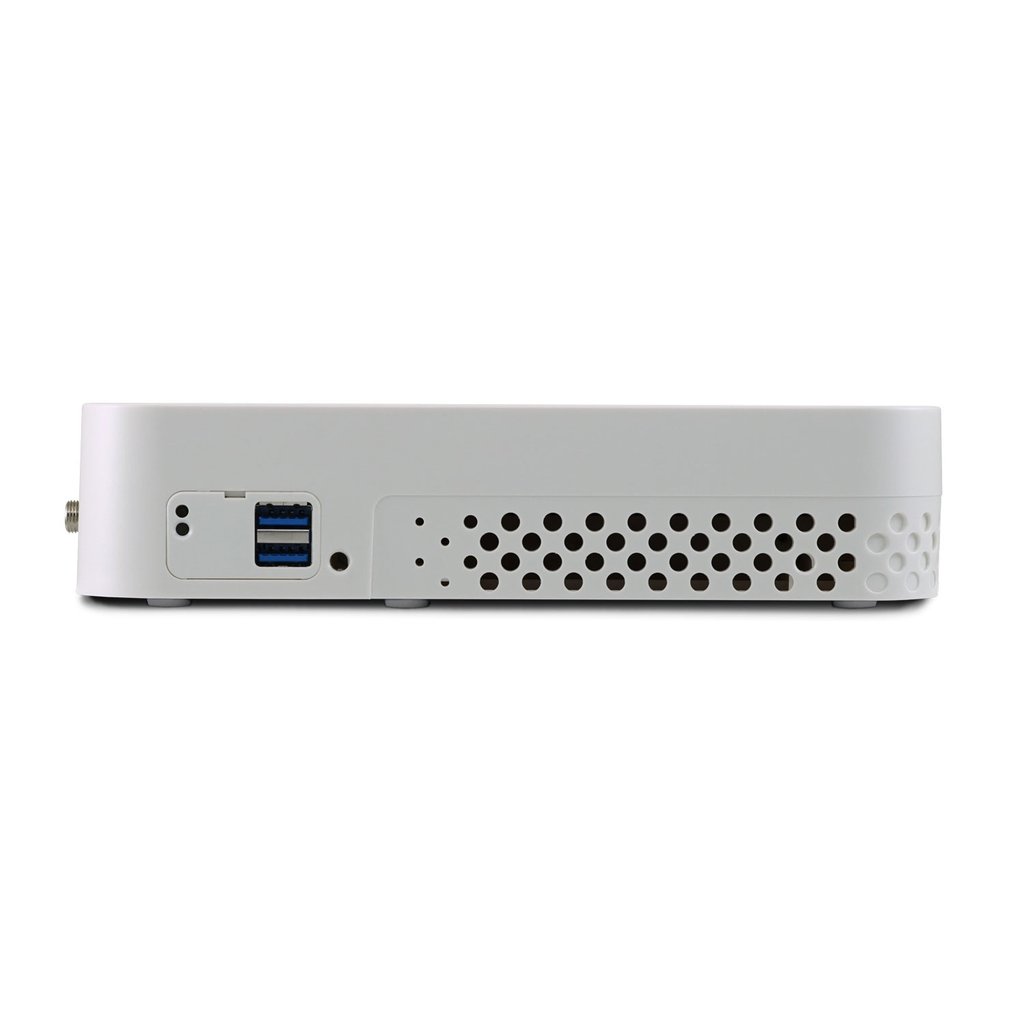

USB Ports | 2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front |
LED | 3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU |
Enclosure | Desktop - Aluminum, plastic, and steel enclosure. 10 x 7.88 x 1.88 inches 254 x 200 x 47.63 mm |
Mounting | Optional wall or rack mount kit |
Cooling | Passive |
Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector. Specifications (not final): - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included - US Power Cord: NEMA 1-15-P to IEC320-C7 - UK Power Cord: BS 1363 to IEC320-C7 - EU Power Cord: CEE7/16 to IEC320-C7 - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
Environmental | 0°C (32°F) to 40°C (104°F) - ambient |
| Certifications | FCC (Class B), IEC / CE, CB, UL, RoHS, RCM |
