Netgate 4200 MAX pfSense+ Security Gateway Appliance

    $ 1,096.56 1096.56 AUD $ 1,096.56

    $ 1,096.56

    This combination does not exist.

    Netgate 4200 MAX pfSense+ Firewall Appliance
    2.1 GHz Intel® Atom® C1110 with AVX2, 4-core
    4 GB DDR5 Memory / 128 GB NVMe M.2 SSD

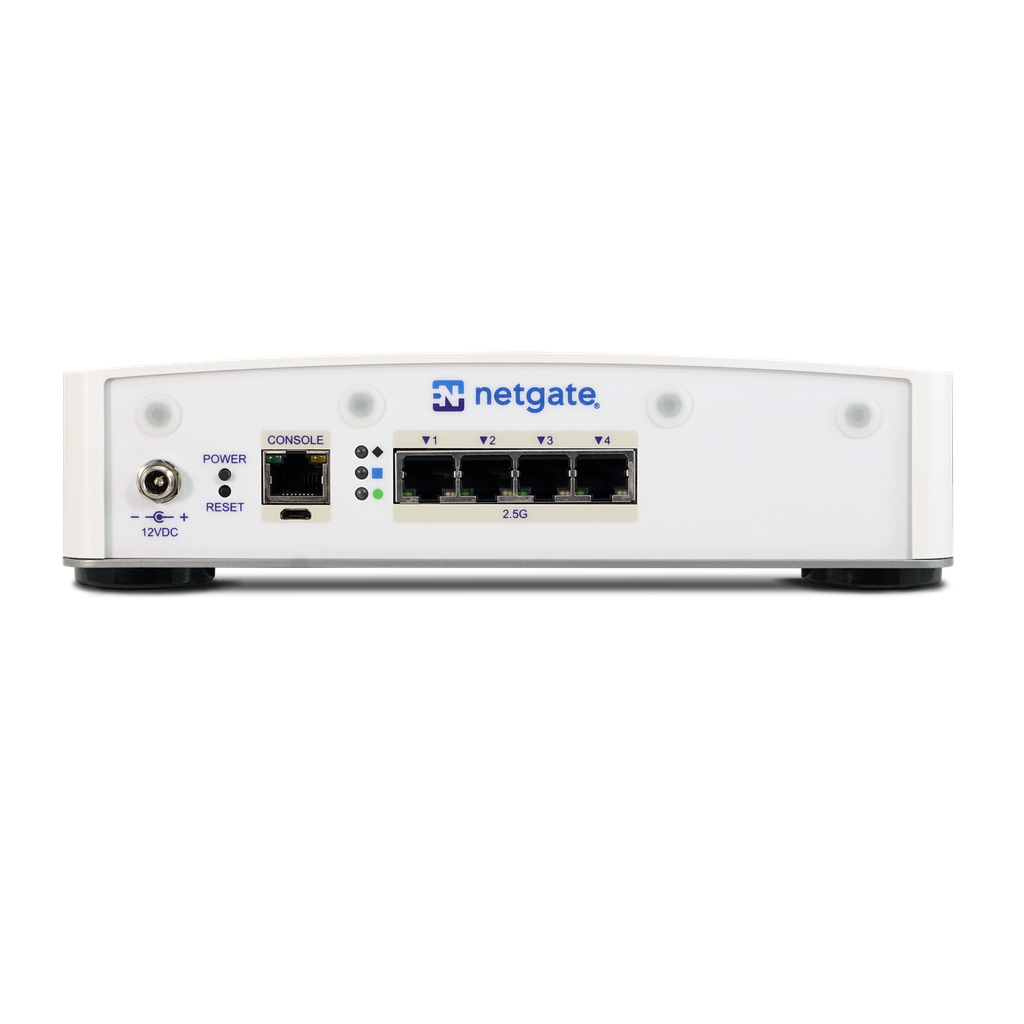

    4 x 2.5 GbE RJ45 "direct" LAN
    1 x 3.0 USB Right Side / MicroUSB + RJ45 Console (Cisco pinout)

    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

    CPU

    Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz

    CPU Cores

    4-Core

    Physical Network I/O ports

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet  LAN ports

    Storage

    128 GB NVMe M.2 SSD

    Memory

    4 GB LPDDR5

    Physical Expansion Card Slots

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    Console Port

    		1x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

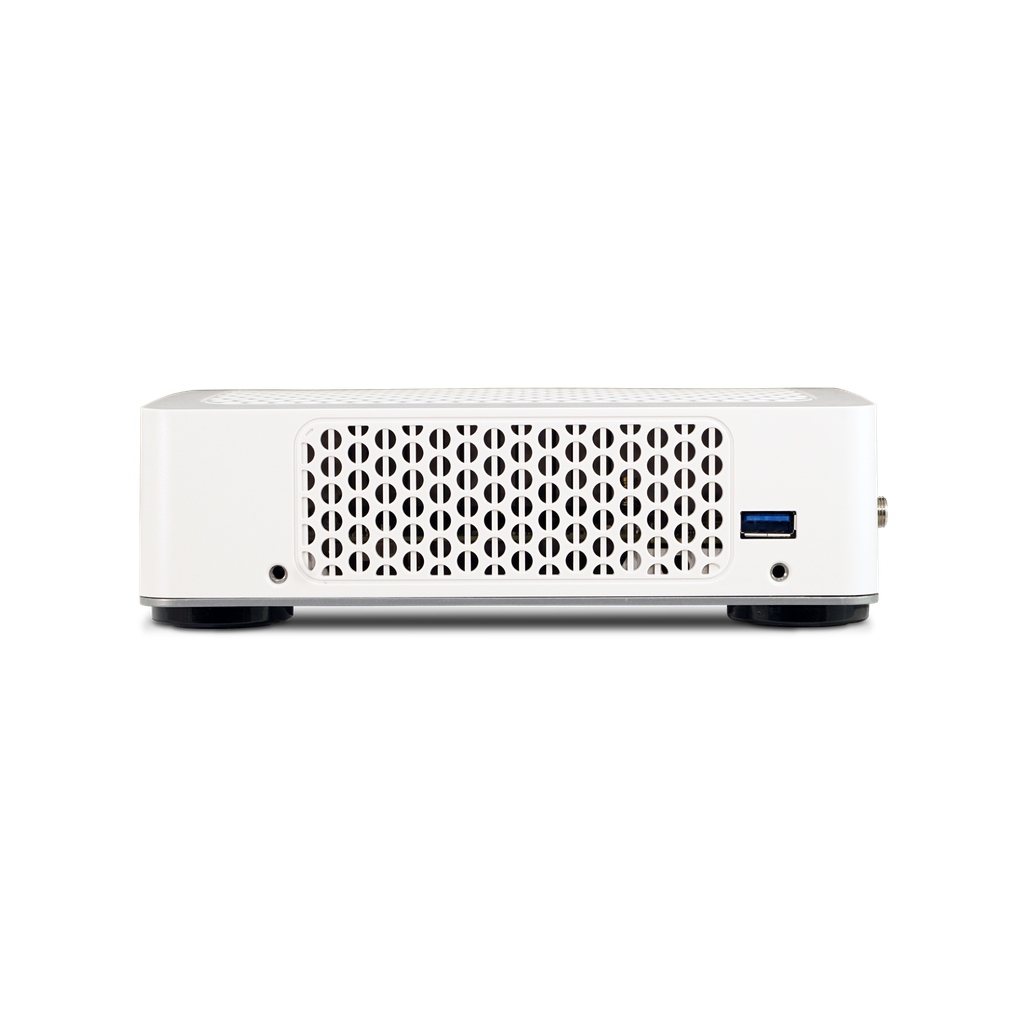

    USB Ports

    1x USB 3.0 jacks (USB-A female) Located on right side rear when viewed from system front

    LED


    3x 3-color LEDs (RGB) Software / bootloader controllable via GPIO

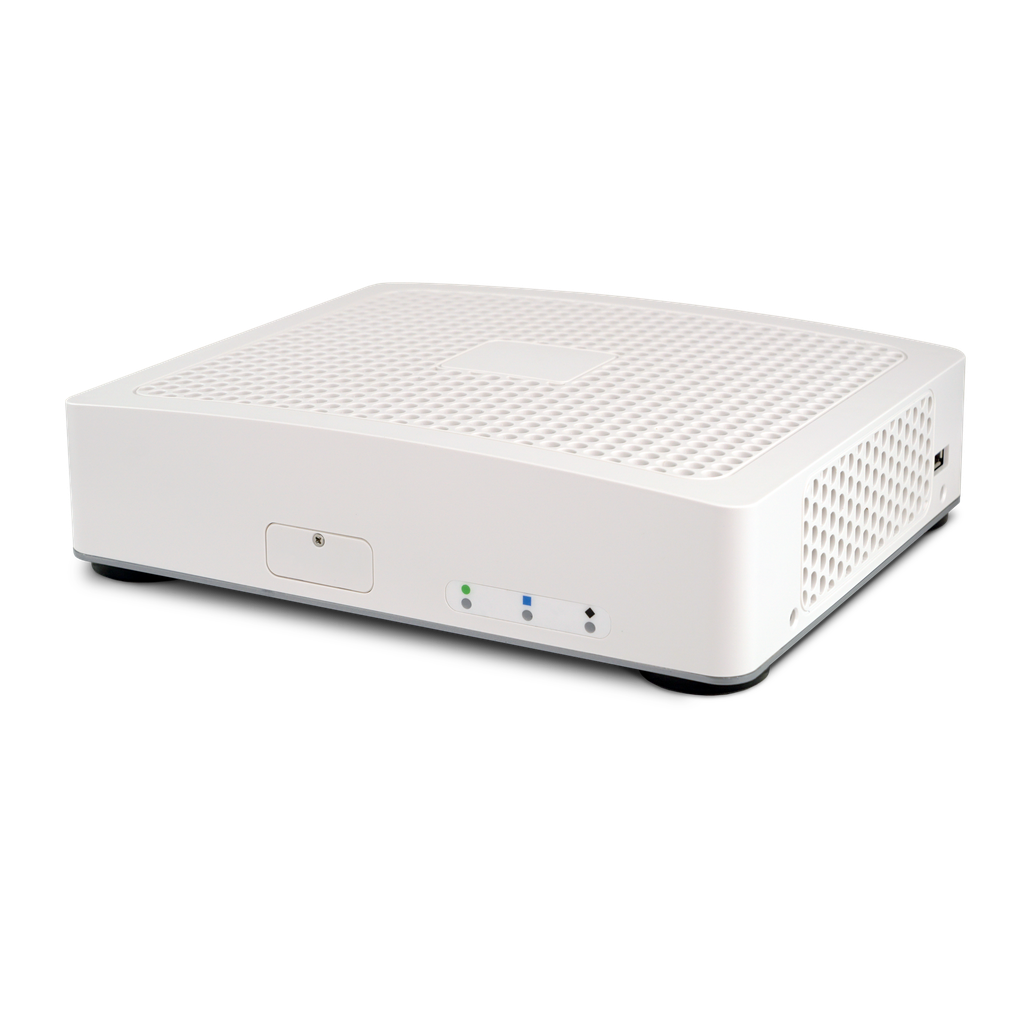

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm

    Mounting

    		Optional wall mount kit (available soon)

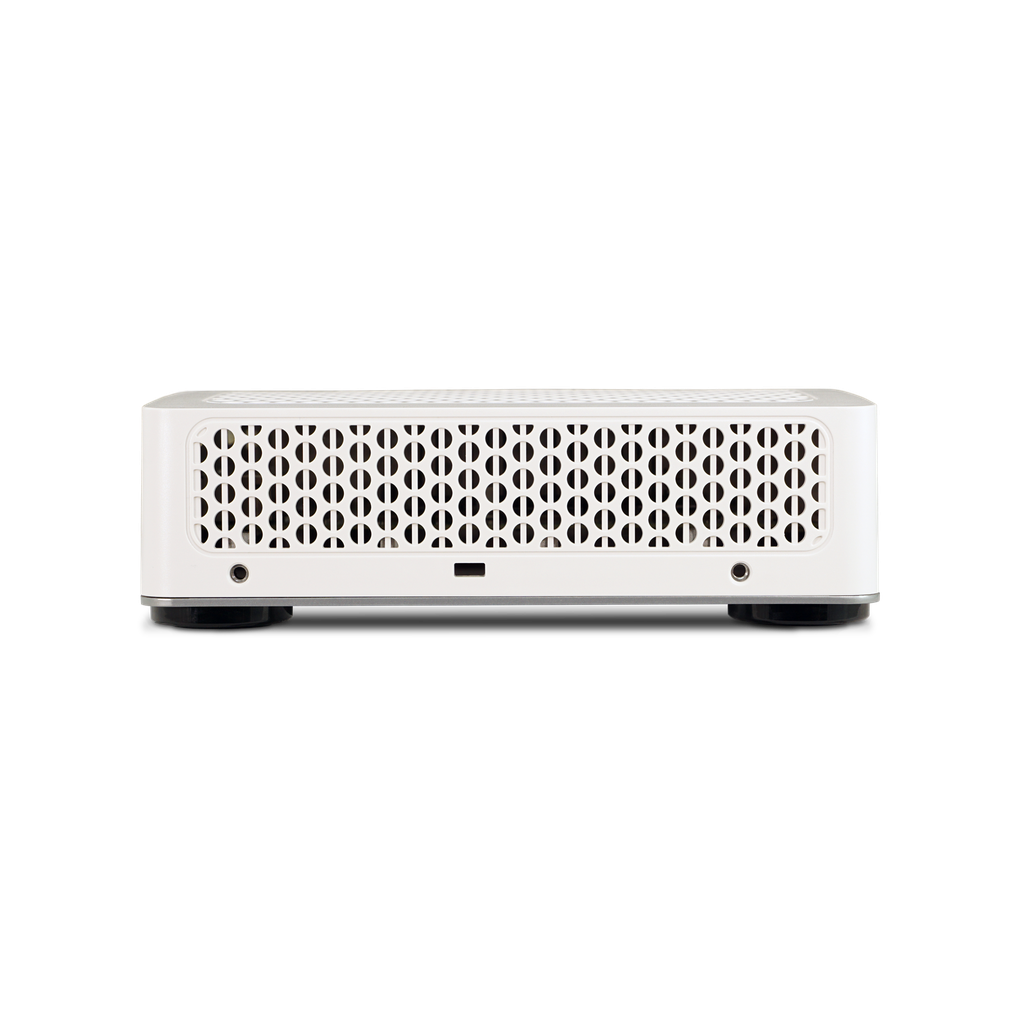

    Cooling

    		Passive - integrated aluminum chassis and heatsink

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector
    - AC Inlet: IEC320-C7 (2 PIN) -
    - Power Cord: One US, UK, EU or ANZ power cord included.
    - US Power Cord: NEMA 1-15-P to IEC320-C7
    - UK Power Cord: BS 1363 to IEC320-C7
    - EU Power Cord: CEE7/16 to IEC320-C7
    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient

    CertificationsCE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA
